3 Common Electrochemical Machining Applications


Primarily used to create complex geometrical shapes efficiently, electrochemical machining lets you do things that would otherwise be nearly impossible with traditional machining methods.

What’s the key to its unique ability? It’s all in the process.

While the tools and electrolytes are critical, it’s the method of removing material through controlled electrical charges that give the ECM process its edge. Let’s dive into precision electrochemical machining applications and how they upgrade your operational processes for the better.

Electrochemical Machining Process | An Overview

The electrochemical machining application is not a traditional technique such as milling, turning or drilling. In fact, it’s a machining process that uses the principles of electrochemistry to remove material from a conductive workpiece.

The fundamental components involved in the ECM process include the power supply, electrolyte, tool, and workpiece.

The entire process revolves around an anodic dissolution or the electrochemical energy in the electrolyte solution that breaks down the material on the workpiece.

In simpler terms, the process involves the tool being connected to the positive terminal of a direct current (DC) supply and the workpiece that is made from a conducting material. Both the tool and workpiece are then connected to the negative terminal of the same power supply and submerged in the electrolyte solution. While in the solution, an electrochemical reaction takes place to create the desired shape. The tool is then used as a cathode which controls and shapes the anode (workpiece).


Read more about our Electrochemical Machining Machines

The process of ECM dissolves the metal directly on the surface of the workpiece through electrolysis, which involves:

  1. A high voltage is applied between the tool and workpiece, creating a gap or space between them.
  2. The electrolyte solution is pumped through this gap, carrying away metal ions from the workpiece.
  3. The tool, which is a cathode, removes material from the anode workpiece through electrolytic action.
  4. The dissolved ions are carried away by the electrolyte solution leaving behind a machined surface on the workpiece.

Types of Techniques For Electrochemical Machining

There’s no one way to complete electro-chemical machining to create a finished piece. Aside from the standard process as outlined above, among the most common techniques:

  • Conductive Grinding: is a specialized type of ECM that uses a grinding tool in place of the cathode. This allows for more precise and controlled material removal from the workpiece.
  • Electrochemical Polishing: this process involves the use of a flat tool working as an electrode to ‘polish’’ out the final workpiece for a smooth surface finish.
  • Electroplating: this process involves the use of electrolysis to deposit material onto another workpiece.
  • Etching: this process utilizes the anodic dissolution that creates the specific design or pattern on the surface of the workpiece. As well, as selectively remove material through electrochemical reactions.


Resource: Curious to learn more about ECM? Read more here.

Variants and Specialized Techniques

Each ECM technique is tailored to tackle specific machining challenges, offering precision and efficiency that traditional methods may not provide. There are various techniques that create the desired workpiece from the following:

  • Pulse ECM (PECM): uses a pulsed direct current for more precise and controlled material removal.
  • Needle ECM (NECM): utilizes a small diameter electrode to create intricate holes or shapes in the workpiece.
  • Micro ECM: is a specialized type of electrochemical machining that operates on a micro-scale. This technique is used to create extremely small and precise features in metal components, making it ideal for industries such as medical devices, electronics, and aerospace.
  • Hydrodynamic ECM: is another specialized variant of ECM that uses an electrolyte solution with high velocity to remove
  • Precision ECM: is a highly accurate type of electrochemical machining that can produce extremely intricate and complex shapes with high precision. This technique is often used in the aerospace, medical, and automotive industries.
  • Smelting: is a specialized type of ECM that involves melting metal components through the application of high temperatures and electrical current. This technique is often used for large-scale metal production and refining processes.

Electrochemical Machining Applications

Because of its precision, electrochemical machining has found a place in creating finished pieces to exact specifications and tight tolerances. Most commonly, you’ll see it used in creating:

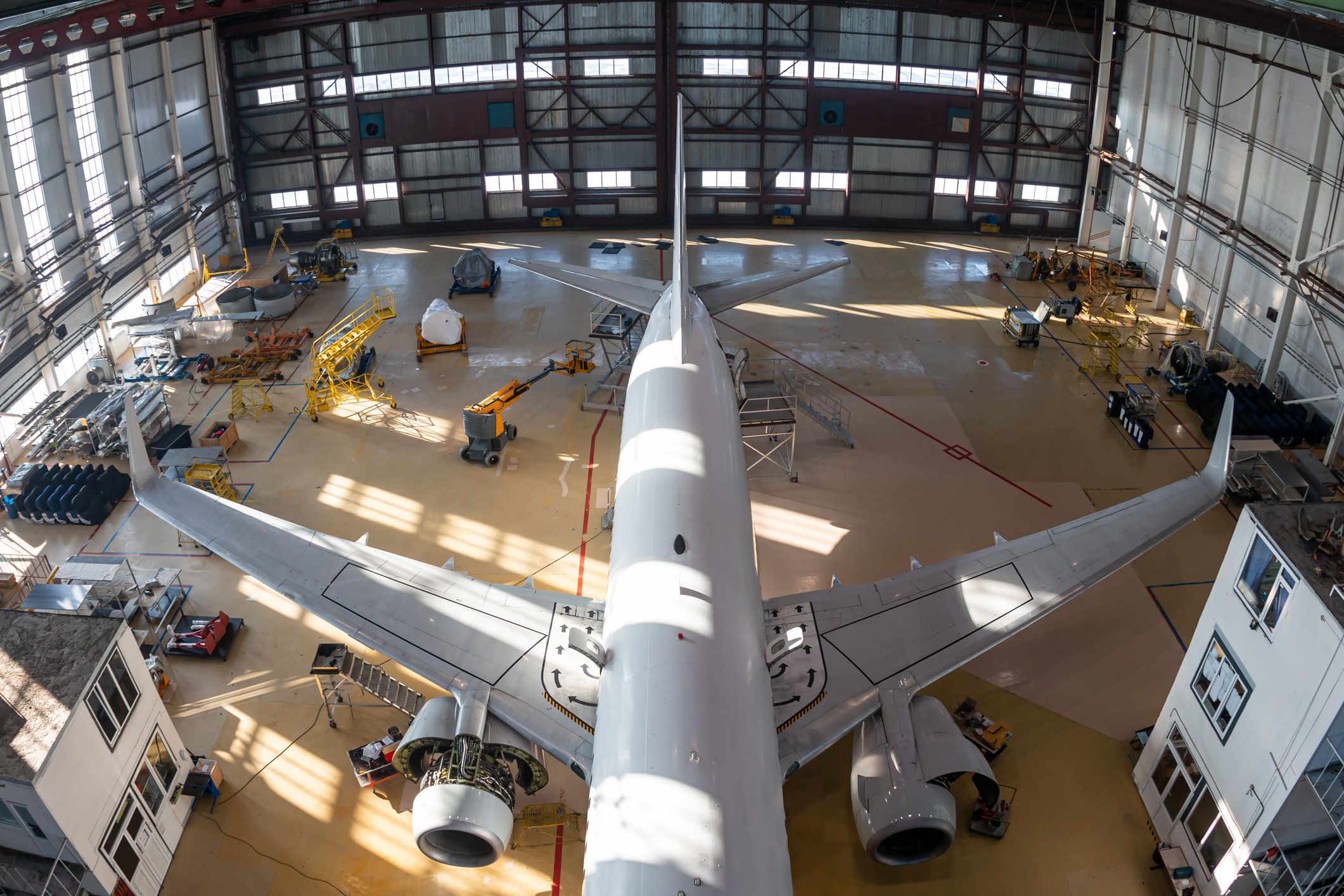

  1. Aerospace for producing complex and precise components such as turbine blades, engine parts, and fuel nozzles.

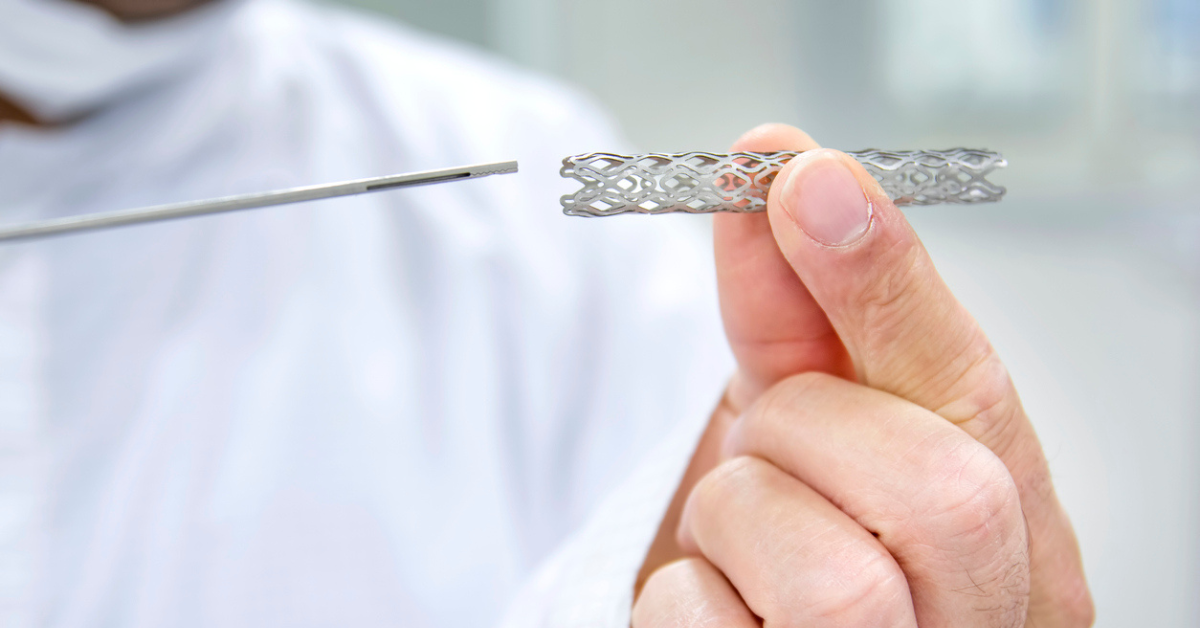

  2. Medical Devices for producing stents, surgical instruments, and orthopedic implants.

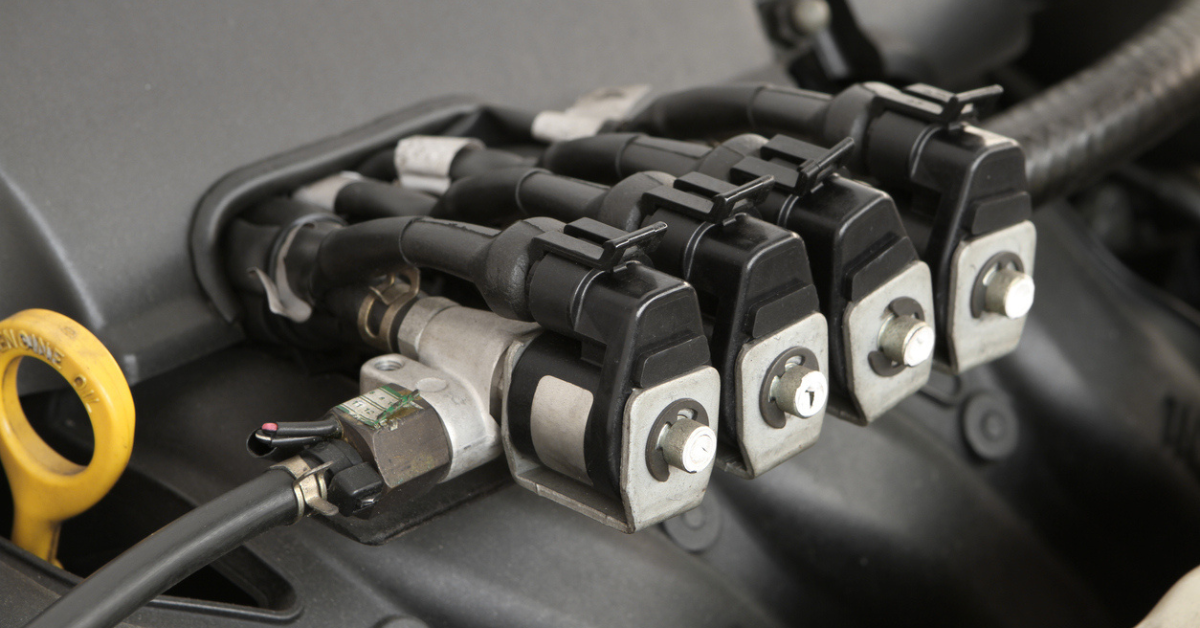

  3. Automotive Industry for producing fuel injection components, gears, and other precision parts.
  4. Electronics Industry for producing microelectronic components such as sensors, circuit boards, and connectors.
  5. Jewelry Making for producing intricate and delicate designs in precious metals such as gold and silver. Its ability to produce fine details makes it an ideal choice for this industry.
  6. Energy Industry for producing components such as heat exchangers, turbine blades, and boilers. Its high precision and versatility make it a preferred.

Electrochemical Machining Advantages and Disadvantages

Electrochemical machining just like any other fabrication method, has its advantages and disadvantages when adopting it into your operational cycle. When comparing both, you’ll find:



No Mechanical Stress

High Initial Cost

No physical contact between the tool and the workpiece

Expensive setup for equipment

Eliminates mechanical stress and deformation

Costs include power supplies, electrolytes, maintenance

High Precision

Material Restrictions

Precise control over machining

Effective only on conductive materials

Capable of producing complex shapes

Limited use with non-conductive materials

Smooth Surface Finish

Chemical Handling and Disposal

Reduces need for secondary processing

Requires careful handling of chemical electrolytes

Minimal surface imperfections

Environmental concerns for disposal

Fast Removal Rates

Power Consumption

The high material removal rate

Significant electrical power consumption

Efficient for large-scale production

Impacts other operational costs

No Tool Wear

Control Complexity

No direct contact prevents tool wear

Requires sophisticated control systems

All told, despite requiring a higher initial investment, electrochemical machining applications still provide a fast production and removal rate for large-scale production – advantages that are hard to ignore.

Comparison with Other Machining Processes

ECM is not a one-size-fits-all process. In fact, there are derivatives of it that are application-based for creating specific shapes with specialized metals. These two processes include:

  • Electrical Discharge Machining (EDM): Considered a hybrid of ECM, EDM is primarily used for cutting intricate shapes in hard metals such as tungsten, carbide, and tool steel. Additionally, EDM uses a spark discharge instead of electrolysis to remove material from the workpiece.
  • Electrochemical Grinding (ECG): Another hybrid process, ECG combines the principles of both ECM and conventional grinding. It uses a conductive wheel as an electrode to remove material through a combination of mechanical and electrochemical action. ECG is often used for precision grinding of difficult-to-machine materials such as composites, ceramics, and hardened steel.

Electrochemical Machining: Integrating Precision & Flexibility

A specialized production technique, electrochemical machining applications offer a unique set of advantages for creating intricate and complex shapes. Its wide range of applications makes it an indispensable tool for modern-day manufacturing processes.

Whether you are in the aerospace, medical, automotive, or energy industry, electrochemical machining provides a cost-effective and highly precise solution for your manufacturing needs.
